Tabs in XProtect Smart Client

Live tab (explained)

On the Live tab, you can view live video feeds, and work with audio, carouselsA particular position for viewing video from several cameras, one after the other, in a view in XProtect Smart Client., hotspotsA particular position for viewing magnified and/or high quality camera images in XProtect Smart Client views., MatrixA product integrated into some surveillance systems, which enables the control of live camera views on remote computers for distributed viewing. Computers on which you can view Matrix-triggered video are known as Matrix-recipients., smart mapA map functionality that uses a geographic information system to visualize cameras, structures, and topographical elements of a surveillance system in geographically accurate, real-world imagery. Maps that use elements of this functionality are called smart maps., pan-tilt-zoom (PTZ) control, digital zoom, independent playback, and more.

Here, you can also enter setup mode, where you can set up views for your cameras and other types of content.

Playback tab (explained)

On the Playback tab, you can investigate recorded video by playing it back, start search from any camera or view, and then document what you find by exporting evidence. To protect the evidence from being deleted from the database, you can also add evidence locks to recorded video.

The timeline gives you advanced features for browsing recorded video and jumping to a specific date and time.

You can also:

• Listen to audio when connected to selected Milestone surveillance systems
• If your XProtect VMS supports smart mapA map functionality that uses a geographic information system to visualize cameras, structures, and topographical elements of a surveillance system in geographically accurate, real-world imagery. Maps that use elements of this functionality are called smart maps., you can get access to the cameras in your system in a geographical interface, which is easy to navigate.
• Use hotspotsA particular position for viewing magnified and/or high quality camera images in XProtect Smart Client views., digital zoom, or carouselsA particular position for viewing video from several cameras, one after the other, in a view in XProtect Smart Client., navigate fisheye lensA lens that allows the creation and viewing of 360° panoramic images. images, print images, and more.

Search tab (explained)

On the Search tab, you can search across the different types of data available in your VMSIncident defined on surveillance system to trigger an alarm in XProtect Smart Client. If your organization uses the feature, triggered alarms are displayed in views that contain alarm lists or maps. system. This includes:

• Video recordings in general
• Recordings with motion
• Recordings with motion in selected areas
• Bookmarks
• People
• Vehicles
• Video recordings with alarms
• Video recordings with events

For each search category, you can apply filters to refine your search.

From the search results, multiple actions are available. For more information, see Actions available from search results (explained).

Alarm Manager tab (explained)

On the Alarm Manager tab, you can view and respond to incidents or technical problems that have triggered an alarm. The tab displays an alarm list, an alarm preview, and a smart map or map if one is available.

System Monitor tab (explained)

On the System Monitor tab, you can get a visual overview of the current state of your system servers, cameras, other devices, and the computer running XProtect Smart Client.

By default, the tiles represent Recording servers, All servers, and All cameras. Your system administrator specifies the tiles and the threshold value for each state.

Here is a description of the colors used:

• Green: Normal state. Everything is running normally
• Yellow: Warning state. At least one monitoring parameter is above the defined value for the Normal state
• Red: Critical state. At least one monitoring parameter is above the defined value for the Normal and Warning state

If a tile changes color and you want to identify the server or parameter that caused the change, click the tile. This opens an overview in the bottom of the screen. Click the Details button for information about why the state changed.

If a tile displays a warning sign, a data collector for one of your monitored servers or cameras may not be running. If you place your mouse above the tile, the system shows you when it last collected data for the relevant tile.

Access Control tab (explained)

On the Access Control tab, you can investigate access control events with search and filtering, and view the associated video recordings and access control data. You can also monitor door states, investigate cardholders and create reports.

You can drag the Access Control tab to its own separate floating window, while you keep the main window in the background to watch multiple views simultaneously. You can also sort columns and drag the columns to different positions.

You can search for, filter, sort, and review data related to:

• Events: Logs the events with a time stamp, event type, the associated door or access control unit, and cardholder name if available. If your XProtect VMS system integrates with multiple access control systems, the list displays from which access control system the event was triggered
• Doors: Lists the doors, access points and other access control units in each access control system, and their current state
• Cardholders: Lists the cardholders in each access control system and their details

Depending on your access control system, you may be able to connect to the access control system applications via the Access Control Administration button in the top right corner to, for example, specify access rights or manage cardholders.

LPR tab (explained)

On the LPR tab, you can investigate LPRShort for "license plate recognition". events from all your LPR cameras, and view the associated video recordings and license plate recognition data. Keep match lists updated and create reports.

The tab includes an LPR event list, and an LPR camera preview for previewing video associated with individual LPR events. Below the preview, information about the license plate appears together with details from the license plate match list it is associated with.

You can filter the event list according to the period, country module, LPR camera, or license plate match list. Use the Search field to search for a particular license plate number. By default, this list shows LPR events from the last hour.

You can specify and export a report of relevant events as PDF.

You can make updates to the existing match lists by using the License Plate Match List function.

Transact tab (explained)

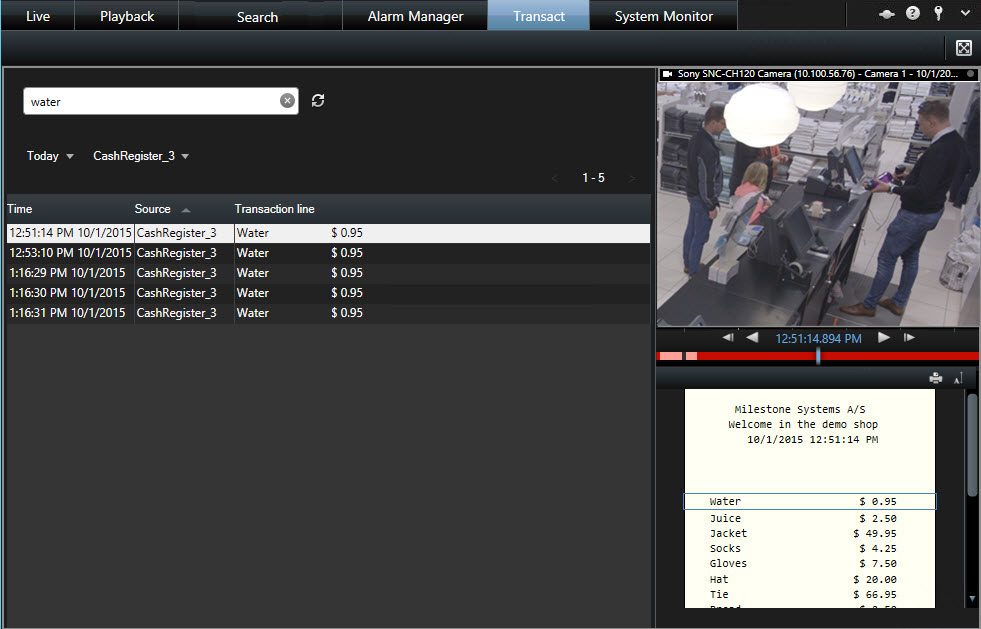

On the Transact tab, you can investigate transactions through search and filtering, and view receipts and video recordings in a combined view.

There is a search field and two filters:

• Search field: enter your search words here to perform a free text search. The search returns transaction lines that contain your search words and does not distinguish between upper and lower case letters. In the receipt, the transaction lines matching the search are highlighted
• Time interval: use this filter to specify the time interval, for example Last 7 days. You can also set a custom interval by your own choice. By default, the filter is set to Today
• Source: use this filter to select the transaction sources you want to view transactions for. By default, the filter is set to All
