BriefCam VMS Integration Guide

NX (Network Optix) Integration

Last Updated: 2 minute read
LanguageEnglish

Integration Summary

VMS Partner

Product

Version

Last Tested BriefCam Version

Integration Level

H.265 Support

NX (Network Optix)

NX Witness VMS

6.1

2025 R1 SP1

Real time alerts integration (L2a)

Yes

NX (Network Optix)

NX Witness VMS

5.0.0.35270

6.4 Hot Fix 1

Integration for on-demand and real-time (L2)

Yes

Directory Connection

The NX Integration plugin uses a URI to connect to the VMS. The syntax of the URI is:

http://{vms-ip-address/hostname}:{vms-port}

For example: http://172.1.1.1:7001 or http://nxwitness:7001

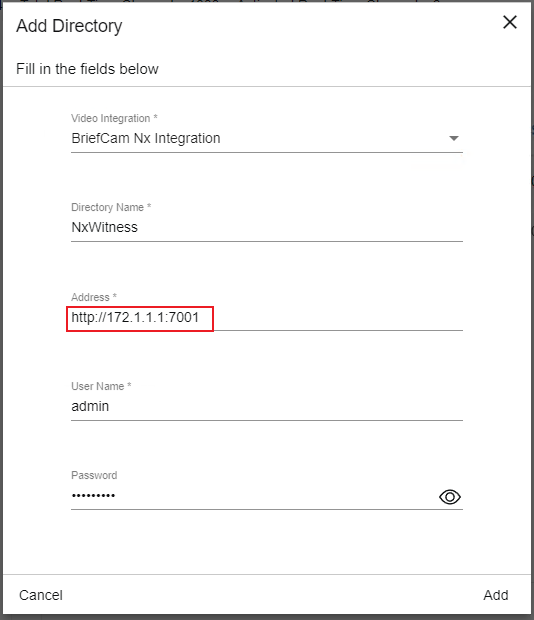

NX address field.png

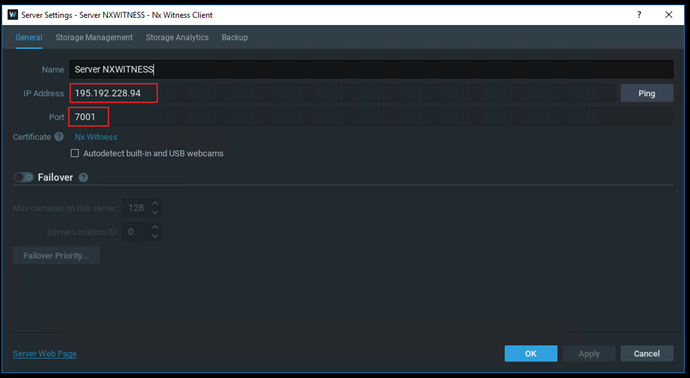

NX Witness Client IP.png

The user’s credentials for the Directory connection are setup in the NX Witness Client’s System Administration in the Users panel.

The user must have at least an Administrator role.

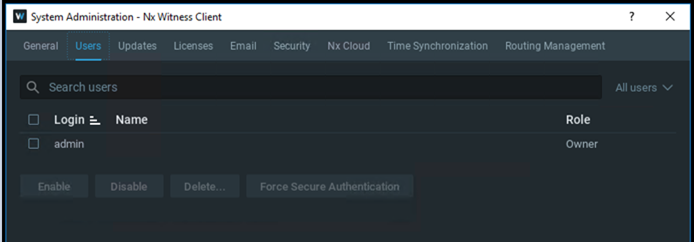

NX Witness Client admin user.png

The NX Integration plugin uses a digest authentication, which needs to be set up for the user that will be used for BriefCam integration.

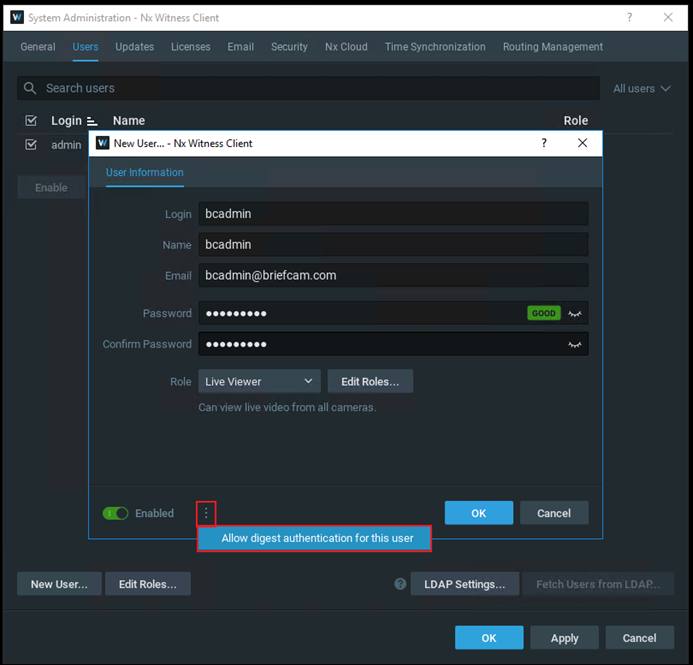

NX Witness Client allow digest.png

Once the digest authentication is setup, this user’s credentials can be used for setting up the directory in the BriefCam Server.

Security Configuration (for 6.1)

For NX Witness 6.1, before beginning to work with the integration, do the following:

  1. Go to the Site Administration.

  2. Open the Security tab.

  3. Uncheck the Force servers to accept only encrypted connections checkbox. This is checked by default.

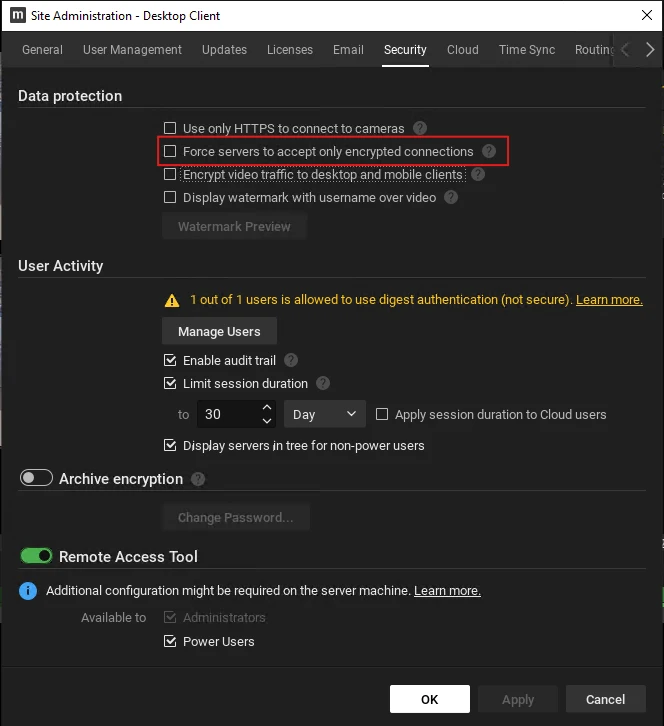

NX Force servers.png

Sending Alerts to NX Witness

Alerts can be sent to NX Witness’ UI.

The following information is sent to NX:

  • Date/Time - Timestamp of the event

  • Event - Hardcoded “BriefCamAlert” for all the alerts generated by BriefCam

  • Source - Camera Name

  • Description - Includes all of the above and the following added information:

    • RuleName

    • Objects:

      • WatchList

      • Type

      • Confidence

  • ObjectClass

  • AlertType

  • Color

  • UpperWear

  • LowerWear

  • Bag

  • Hat

  • Mask

  • Related Cameras (and their IPv4 address)

In the BriefCam Administrator Console’s Environment Settings section, there are three settings relevant for sending alerts outside of BriefCam:

  • To send alerts outside of BriefCam, set the Respond.AlertsPublishingEnabled setting to true.

  • To send alerts to a VMS, check that the Respond.AlertsPublishingToVMSEnabled setting is set to true.

  • To change the polling interval, use the Respond.AlertsPublishingIntervalInMilliseconds setting.


Note

If you make changes to the settings, you need to restart or start the VSServer service.

Settings File

There is one setting in the BriefCam.NxIntegration.ini file.

[Fetching] ;SecondsFromNowNotRecordedYet = 300

This setting is used when the VMS has not yet recorded the newest footage to the archive. This setting prevents the user from accessing videos that are too new and returns NoRecordings.

To use this setting, remove the semicolon from the beginning of the row. If the semicolon is not removed, the plugin will always fetch the newest recordings.

Known Limitations

  • Bounding boxes when playing the original video are not supported.
