XProtect LPR

LPR on the Live tab (explained)

On the Live tab, you can view live video from the cameras that have been configured for license plate recognition (LPR). You can view video from several LPR cameras in a view at the same time. On the right side of the view item, the LPR events appear whenever there is a match. In setup mode, you can change the settings that define how the list of license plate numbers displays.

When you click a license plate in the LPR event list, the live video automatically pauses and changes to independent playback. To go back to viewing live video, either click the license plate again or click the Independent playback icon on the camera toolbar.

LPR on the Search tab (explained)

On the Search tab, you can search for video recordings associated with vehicles.

LPR tab (explained)

On the LPR tab, you can investigate LPRClosedShort for "license plate recognition". events from all your LPR cameras, and view the associated video recordings and license plate recognition data. Keep match lists updated and create reports.

The tab includes an LPR event list, and an LPR camera preview for previewing video associated with individual LPR events. Below the preview, information about the license plate appears together with details from the license plate match list it is associated with.

You can filter the event list according to the period, country module, LPR camera, or license plate match list. Use the Search field to search for a particular license plate number. By default, this list shows LPR events from the last hour.

You can specify and export a report of relevant events as PDF.

You can make updates to the existing match lists by using the License Plate Match List function.

LPR event list (explained)

The LPRClosedShort for "license plate recognition". event list displays all LPR events. By default the list displays LPR events from the last hour and with the newest at the top, but your system administrator can change this.

When you select an LPR event from the list, you can see a preview to the right with the related video sequence for the event. The title bar of the preview shows the name of the LPR camera that the LPR event was triggered from. You also see the license number, country module, time of the event and the match list that triggered the event.

You can change how the LPR event list displays events; you can sort the columns and you can drag them to different positions. You can use the filters at the top of the list to filter LPR events or use the Search field to search.

The LPR event list only displays LPR events from the time of your search or filter. If you want to see the latest LPR events, click the Refresh button.

Filtering LPR events (explained)

There are several ways you can filter the LPR event list, so it displays just the LPR events that you are interested in; you can click any of the filters at the top of the list to see only LPR events associated with that filter. Any filters you apply are immediately reflected in the list.

  • Period: Select one of the available periods to see LPR events within that particular time
  • Country module: Clear or select country modules to view only LPR events linked to a license plate from a particular country, state or region
  • LPR camera: Select one or more of the available LPR cameras to view only LPR events for those cameras
  • License plate match list: Select one or more license plate lists to view only LPR events generated by those lists

You can combine the filters, for example, for a particular country module on a certain date.

You can also use the Search field to search for a particular license plate. Enter a combination of characters to find results with combinations of those characters. For example, if you enter the characters XY 12 you will get license plates that have both XY and 12 in their number. If you enter XY12 you will only get license plates that have XY12 in their number.

Edit license plate match lists

You can add and delete license plates from license plate match lists.

  1. On the LPR tab, at the top right of the window, click License Plate Match Lists to open the License Plate Match Lists dialog box.
  2. In Select license plate match list, select the list you want to edit.
  3. To add a license plate, click Add. Enter relevant information and click OK.
  4. To edit an existing license plate, you can use the search function to find the relevant license plate.
  5. Double-click a single row to edit or select multiple rows and click Edit.
  6. In the dialog box, enter information and click OK. If the match list contains muliple columns, you can edit the information in all fields.
  7. To remove a license plate, you can use the search function to find the relevant license plate.
  8. Select multiple rows if needed and click Delete.
  9. Click Close.

Alternatively, you can add a license plate to a license plate match list by right-clicking an unlisted LPR event and select Add to list. You can also remove a license plate by selecting the relevant LPR event, and on the right, below the preview, click the Remove from list icon.

Import or export license plate match lists

You can import a file with a list of license plates that you want to use in a license plate match list. You have the following import options:

  • Add license plates to the existing list
  • Replace the existing list

This is useful if, for example, the lists are managed from a central location. Then they can keep all local installations updated by distributing a file.

Similarly you can export the complete list of license plates from a match list to an external location.

  1. To import a license plate match list:
    1. On the LPR tab, at the top right of the window, click License Plate Match Lists to open the License Plate Match Lists dialog box.
    2. Select the relevant list.
    3. To import a file, click Import.
    4. In the dialog box, specify the location of the import file and the import type. Click Next.
    5. Await the confirmation and click Close.
  2. To export a license plate match list:
    1. Click Export.
    2. In the dialog box, specify the location of the export file and click Next.
    3. Click Close.
    4. You can open and edit the exported file in, for example, Microsoft Excel.

Supported formats are .txt or .csv.

Export LPR events as a report

You can export a report of LPRClosedShort for "license plate recognition". events to a PDF file.

  1. On the LPR tab, filter or search for the events you want to include in the report.

    If the number of found events is very high, you will receive a recommendation to refine the search and thereby reduce the number of search results.

  2. Click the LPR Report button.
  3. Specify the following values and click OK:
    • Report name
    • Report destination
    • A comment field
    • An option to include snapshots

    A progress bar appears at the top right of the XProtect Smart Client window.

  4. Click Details to view the report.

If you want to change the paper format or font, open the Settings window, select Advanced, and change the PDF report format or PDF report font settings.

LPR on the Alarm Manager tab

On the Alarm Manager tab, you can view and investigate alarms related to LPR. Some customization is required before you can view the information:

In general, read the sections about alarm management for more details on XProtect Smart Client functionality.

View LPR recognitions

You can view LPR recognitions in the alarm list. If you select events as the data source, all recognitions are displayed. If you select alarms as the data source, only the recognitions associated with an alarm are displayed.

To use the Type field referred to in the steps below, the field must be enabled in Management Client or Management Application by your system administrator.

Steps:

  1. Go to the Alarm Manager tab.
  2. Click the Setup button to enter setup mode.
  3. To view recognitions associated with an alarm:
    1. In the Data Source list, select Alarm.
    2. Click Setup again to exit setup mode. The recognitions are displayed in the alarm list.

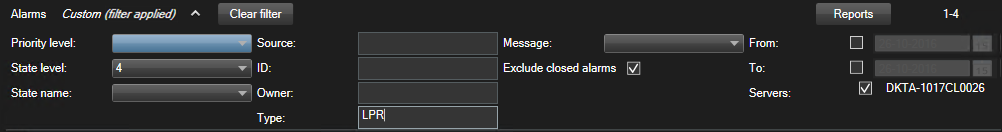

    3. To view incoming LPR alarms, enter LPR in the Type field.

  4. To view all recognitions:
    1. In the Data Source list, select Event.
    2. Click Setup again to exit setup mode. The recognitions are displayed in the alarm list.
    3. To view all incoming LPR events, enter LPR in the Type field.

The alarm list will display the filtered results only when you leave the field you modified.
