Configurazione di telecamere e VMS
Questa parte riguarda solo i BriefCam prodotti collegati a sistemi VMS esterni.
[en] Connecting BriefCam to a VMS Server
[en] Make sure the appropriate VMS plug-ins are installed.

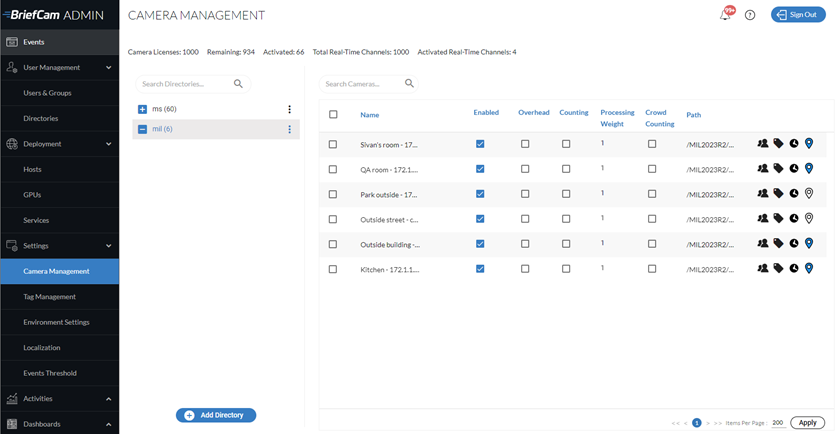

[en] Open the Camera Management section (see image below), which lists all connected VMS servers on the left and the servers’ associated cameras on the right.

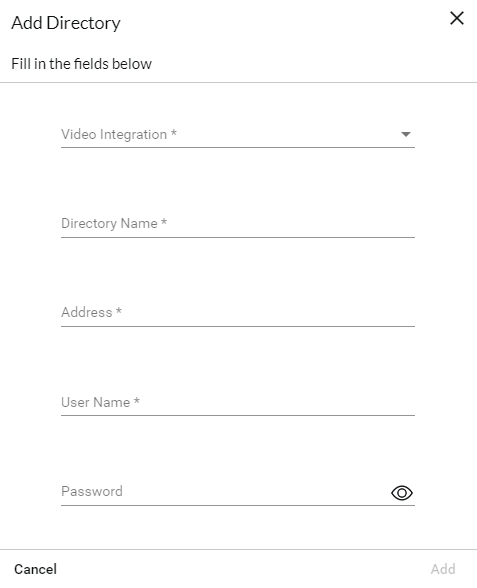

[en] Click the Add directory button to add a VMS server. The Add Directory dialog opens.
[en] From the Video Integration field, select the appropriate VMS integration option. Different integrations can be added by installing additional VMS-specific plugins.
[en] In the Directory Name field, enter a display name for the user directory. The directories should have different names.
[en] In the Address field, enter the VMS server’s IP/host address. If you are not using the default port (80), add the communication port (the port number may be specified as a suffix to the address, preceded by a colon).
[en] In the User Name and Password fields, enter the VMS server user name and password. This user must have permissions in the VMS to the cameras exposed for BriefCam. Click Add to add the directory.
[en] If you selected Milestone or Genetec, you will also see an RTSP Settings toggle button. These settings can be used to securely define the RTSP credentials for the integration.

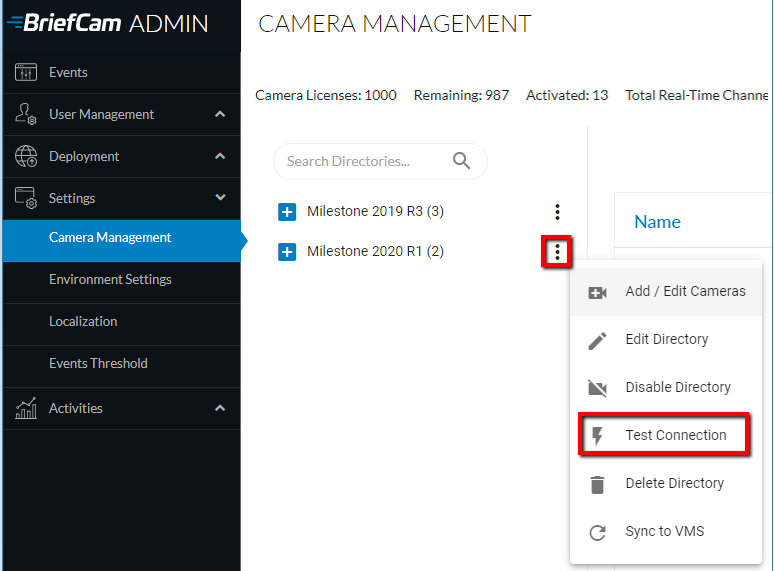

[en] To test the connection to the newly added directory, click the zoom (
) icon to the right of a directory (VMS server) name and select the Test Connection option.
[en] To edit the directory, click the Edit Directory option. When changing the Address field, the new value must point to the existing directory.
[en] To completely disable all cameras associated with a directory, click the Disable Directory option. In a disabled directory, it is not possible to enable individual cameras. If you disable and then enable a directory, all of the associated cameras are also enabled.
[en] To completely remove a VMS directory (assuming that none of the cameras associated with it are currently activated), click the Delete Directory option.
Nota
[en] Make sure to click the Apply button to retain any configuration changes.
Nota
[en] When using a multi-site deployment (comprised of multiple site systems and a central Hub), video sources are set up in the Sites’ Administrator Consoles and not in the Hub Administrator Console.
Selezione e attivazione della telecamera
A questo punto, è possibile selezionare, abilitare o disabilitare (in base ai termini della licenza) feed di telecamere singoli o multipli che possono essere successivamente elaborati per generare video sinossi.

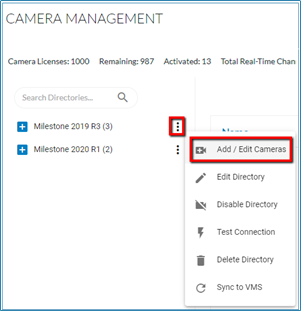

Per attivare le telecamere, fare clic sull'icona dello zoom (
) a destra del nome di una directory (server VMS) e selezionare l'opzione Aggiungi/Modifica telecamere.
Appare la schermata di attivazione della telecamera, con un elenco delle telecamere associate alla directory VMS selezionata.
Nota
L'attivazione della telecamera è un processo irreversibile. Una volta terminato, il conteggio delle attivazioni non può essere reimpostato a meno che non venga aperta una richiesta speciale approvata con il BriefCam supporto.

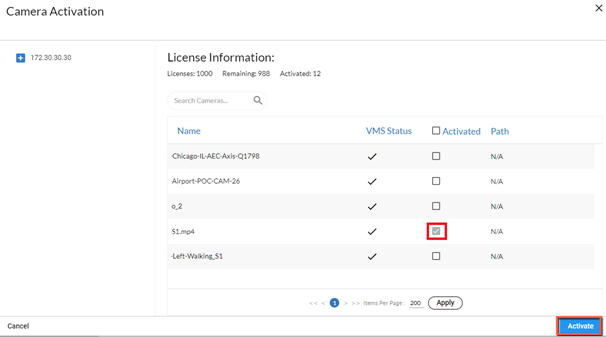

Selezionare la casella di controllo nella colonna Attivato per tutte le telecamere che si desidera attivare e fare clic sul pulsante Attiva (che si trova nell'angolo in basso a destra). La casella di controllo per le telecamere già attivate sarà disattivata.
A differenza dell'attivazione di una telecamera, che è irreversibile, è possibile disabilitare le singole telecamere selezionando o deselezionando la casella di controllo Abilitato/Disabilitato nella colonna Stato. Le telecamere disabilitate non compariranno nel client BriefCam Web. Nota: è anche possibile abilitare e disabilitare le telecamere dalla schermata Gestione telecamere.
Nota
Quando un server VMS non è disponibile, le telecamere non si attivano automaticamente quando BriefCam il server VMS diventa nuovamente disponibile. Per risolvere il problema, riavviare AlertProcessingServices.
[en] Camera Configuration

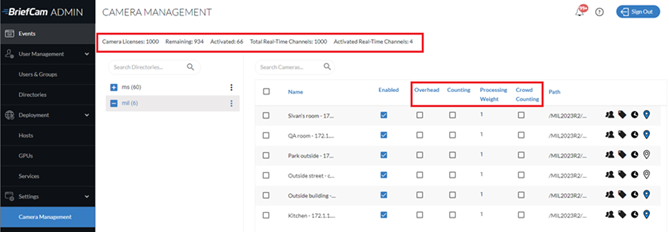

[en] At the top of the screen, you can see the number of active and remaining camera licenses.
[en] This screen has the following columns:
[en] Overhead
[en] If the camera is set with an overhead angle or is an overhead fisheye camera and the camera is used with the Line Crossing feature, it is recommended to check the Overhead checkbox. This will improve the object extraction accuracy by running the algorithmic engine in a special processing mode that compensates for the warping that overhead cameras introduce. Note that only people are detected on cameras with the Overhead checkbox checked. Vehicles and animals are not detected. In addition, the only metadata generated for people detected in Overhead mode is colors.
[en] Counting
[en] If the camera is set with an overhead angle and is used for people counting, check the Counting checkbox for the cameras. This will improve the people counting accuracy by running the algorithmic engine in a special processing mode that reduces the amount of false object detections, which makes the counting more reliable. This Counting mode, which is available for the OX5 engine, is not the “people counting” feature. Note that vehicles are not detected on Counting cameras.
[en] Processing Weight
[en] The processing weight is how much of the total GPU Processing Capacity is expected to be consumed by this camera. The GPU’s processing capacity is defined in the GPUs screen.
[en] Note that the weighting system only applies to real-time processing. All on-demand tasks are treated as having a processing weight of 1.
[en] Crowd Counting
[en] Crowd counting is only supported for the Linux-based Next-Gen (OX6) engine.
[en] Select the Crowd Counting checkbox to enable the collection of crowd counting data for groups of more than 50 people, by default. This number is configurable using the HeadCount.CrowdCountingThreshold environment setting. The value you enter in this setting appears in the user interface with one more than the entered value (for example, if you enter 60, 61 will appear in the user interface).
[en] By default, crowd counting data is not collected from the camera.
[en] Note that:
[en] Only the Area filter is available with the Crowd Counting filter.
[en] Enabling Crowd Counting on a camera will cause existing rules for that camera to stop sending alerts. Therefore, it is recommended to disable or delete all existing rules for the camera before enabling Crowd Counting.
[en] Disabling Crowd Counting on a camera will turn existing Crowd Counting rules for that camera into People Counting rules. Therefore, it is recommended to disable or delete all existing rules for the camera before disabling Crowd Counting.
[en] Instant REVIEW mode is not supported for Crowd Counting cameras.
[en] Camera Management icons
[en] This screen has the following icons:
[en] Icon | [en] Description |
 | [en] Set permissions for the cameras. See: Autorizzazioni delle telecamere. |
 | [en] Assign tags to the camera. See: Assegnazione di un tag a una telecamera. |
 | [en] Set a time zone. This is only for use in multi-site environments. See: Assegnazione di un fuso orario a una telecamera. |
 | [en] Set coordinates for outdoor cameras for use in the Cameras view and Fast Track. You can hover over the icon to see a tooltip with the coordinates. Geo-location available in Milestone (all supported versions) and Genetec (v5.8 and above) are automatically set here. You can override the Milestone and Genetec coordinates by clicking on the icon and editing the coordinates. Coordinates can also be set in the BriefCam client. Note that Sincronizzazione delle telecamere con il VMS will override manually added coordinates. |
 | [en] Hover over this to see the activation time and last modified time information. |

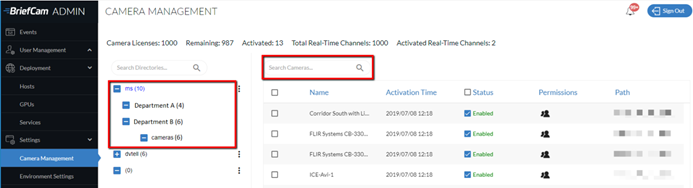

[en] Filtering Cameras
[en] There are two ways to filter the list of cameras.
[en] Use the directory tree on the left to drill down to the camera you are searching for.
[en] Use the Search field to narrow the list even further. The search will search the camera name, camera ID, and tags.
Modifica del nome di una telecamera
Se si modifica il nome di una telecamera, è necessario ridefinire e attivare nuovamente la telecamera.
Sostituzione di una telecamera
È possibile sostituire le telecamere discontinue o rotte come segue:
Collegare la nuova telecamera al VMS e assegnarle lo stesso nome della telecamera fuori produzione o rotta.

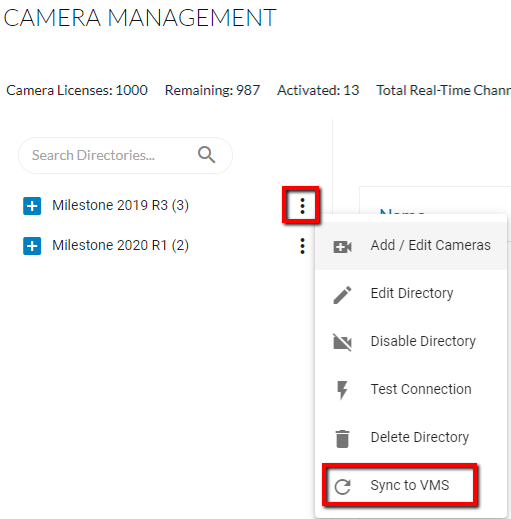

Da BriefCam Administrator Console, fare clic su Sincronizza con VMS.
BriefCam identificherà la telecamera sostituita e la attiverà.
BriefCam manterrà tutte le impostazioni esistenti per le telecamere sostituite.
Per riavviare l'elaborazione di Regole e Origini con attività in tempo reale, riavviare i servizi Alert Processing Server e VSServer in BriefCam Administrator Console.
