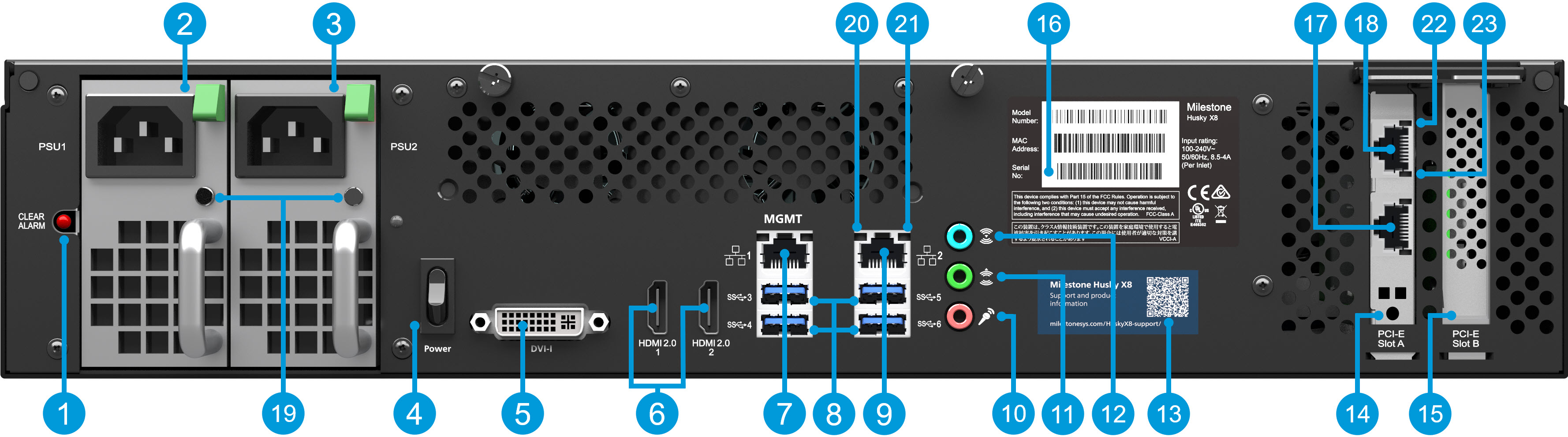

Back view
Connectors
1. Clear alarm button (power supply)
7. LAN port 1 (Intel AMT)
13. QR code for support and information
2. Power supply 1 (hot swappable)
8. 4 x USB 3.0 ports
14. PCI-E slot A (Option: 2 x 10Gb/s CNA card)
3. Power supply 2 (hot swappable)
9. LAN port 2
15. PCI-E slot B (RAID controller)
4. Power switch
10. Audio IN
16. Label with serial number
5. DVI display port
11. Audio OUT
17. (Option CNA card LAN port 2)
6. 2 x HDMI display ports
12. Audio MIC
18. (Option CNA card LAN port 1)
LED status indicators
LED colors
19. Power supply
Red = Only one power supply is connected. Green = Both are connected
20. LAN ports activity
Flashing yellow
21. LAN ports link speed
Yellow = 100Mb/s. Green = 1Gb/s. Off = 10Mb/s
22. CNA card LAN ports link speed
Yellow = 1Gb/s. Green = 10Gb/s
23. CNA card LAN ports activity
Flashing green
