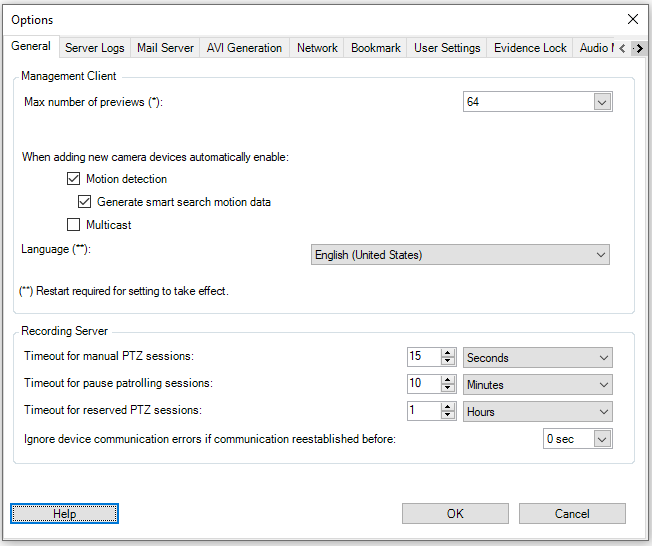

Setting options for the system

Select the maximum number of thumbnail images displayed in the Preview pane. Default is 64 thumbnail images.

Select Action > Refresh from the menu for the change to take effect.

A large number of thumbnail images in combination with a high frame rate may slow the system down.

Select the check box to enable motion detection on new cameras, when you add them to the system with the Add Hardware wizard.

This setting does not affect motion detection settings on existing cameras.

You enable and disable motion detection for a camera on the Motion tab for the camera device.

Generation of motion data for smart search requires that motion detection is enabled for the camera.

Select the check box to enable generation of smart search motion data on new cameras, when you add them to the system with the Add Hardware wizard.

This setting does not affect motion detection settings on existing cameras.

You enable and disable the generation of smart search motion data for a camera on the Motion tab for the camera device.

Select the check box to enable multicast on new cameras when you add them with the Add Hardware wizard.

This setting does not affect multicast settings on existing cameras.

You enable and disable live multicasting for a camera on the Client tab for the camera device.

Client users with the necessary user rights can manually interrupt the patrolling of PTZ cameras. Select how much time should pass before regular patrolling is resumed after a manual interruption. The setting applies for all PTZ cameras on your system. Default setting is 15 seconds.

If you want individual timeouts on the cameras, you specify this on the Presets tab for the camera.

Client users with a sufficient PTZ priority can pause patrolling on PTZ cameras. Select how much time should pass before regular patrolling is resumed after a pause. The setting applies for all PTZ cameras on your system. Default setting is 10 minutes.

If you want individual timeouts on the cameras, you specify this on the Presets tab for the camera.

Set the default timeout period for reserved PTZ sessions. When a user runs a reserved PTZ session, the PTZ camera cannot be used by others before it is released either manually or when the period has timed out. Default setting is 1 hour.

If you want individual timeouts on the cameras, you specify this on the Presets tab for the camera.

Select the log type that you want to configure:

• System logs
• Audit logs
• Rule-triggered logs

Enter the email address that you want to appear as the sender of email notifications for all notification profiles. Example: sender@organization.org.

If you want to secure the communication between the management server and the SMTP mail server, select this check box.

The connection is secured using the STARTTLS email protocol command. In this mode, the session begins on an unencrypted connection, then a STARTTLS command is issued by the SMTP mail server to the management server to switch to secure communication using SSL.

Select the codec (compression/decompression technology) that you want to apply. To have more codecs available in the list, install them on the management server.
Not all cameras support all codecs.

(Not available for all codecs). Use the slider to select the degree of compression (0-100) to be performed by the codec.

0 means no compression, generally resulting in high image quality and large file size. 100 means maximum compression, generally resulting in low image quality and small file size.

If the slider is not available, the compression quality is determined entirely by the selected codec.

(Not available for all codecs). If you want to use keyframes, select the check box and specify the required number of frames between keyframes.

A keyframe is a single frame stored at specified intervals. The keyframe contains the entire view of the camera, whereas the following frames contain only the pixels that change. This helps greatly reduce the size of files.

If the check box is not available, or not selected, every frame contains the entire view of the camera.

Specify a prefix for all the bookmarks that is made by the users of XProtect Smart Client.

A list with defined evidence lock profiles.

You can add and remove existing evidence lock profiles. You cannot remove the default evidence lock profile but you can change its time options and its name.

Provides the name of a message. You enter the name when you add a message. To upload a message to the system, click Add.

Provides a description of the message.

You enter the description when you add a message. You can use the description field to describe the purpose or the actual message.

Lets you upload audio messages to the system.

Supported formats are standard Windows audio file formats:

• .wav
• .wma
• .flac

Lets you modify the name and description, or you can replace the actual file.

Delete the audio message from the list.

Specify if you want to use analytics events. As default, the feature is disabled.

Specify the port used by this feature. The default port is 9090.

Make sure that relevant VCA tool providers also use this port number. If you change the port number, remember to change the port number of the providers.

Specify if events from all IP addresses/hostnames are allowed, or only events from IP addresses/hostnames that are specified in the Address list (see below).

Specify the number of days for storing alarms with the state Closed in the database. If you set the value to 0, the alarm is deleted after it has been closed.

Alarms always have timestamps. If the alarm is triggered by a camera, the timestamp has an image from the time of the alarm. The alarm information itself is stored on the event server, while the video recordings corresponding to the attached image are stored on the relevant surveillance system server.

To be able to see the images of your alarms, keep video recordings for at least as long as you intend to keep alarms on the event server.

Specify the number of days for storing alarms with the state New, In progress, or On hold. If you set the value to 0, the alarm appears in the system, but will not be stored.

Alarms always have timestamps. If the alarm is triggered by a camera, the timestamp has an image from the time of the alarm. The alarm information itself is stored on the event server, while the video recordings corresponding to the attached image are stored on the relevant surveillance system server.

To be able to see the images of your alarms, keep video recordings for at least as long as you intend to keep alarms on the event server.

Specify the number of days for keeping the event server logs. If you keep the logs for longer periods of time, ensure that the machine where the event server is installed has enough disk space.

To keep a more detailed log for event server communication, select the check box. It will be stored for the number of days specified in the Keep logs for field.

You can choose between two default data sources and define a custom data source. What to choose depends on your third party program and/or the hard- or software you want to interface from:

Compatible: Factory default settings are enabled, echoes all bytes, TCP and UDP, IPv4 only, port 1234, no separator, local host only, current code page encoding (ANSI).

International: Factory default settings are enabled, echoes statistics only, TCP only, IPv4+6, port 1235, <CR><LF> as separator, local host only, UTF-8 encoding. (<CR><LF> = 13,10).

[Data source A]

[Data source B]

and so on.

Click to define a new data source.

Name of the data source.

Data sources are by default enabled. Clear the check box to disable the data source.

Click to reset all settings for the selected data source. The entered name in the Name field remains.

The port number of the data source.

Protocols which the system should listen for, and analyze, in order to detect generic events:

Any: TCP as well as UDP.

TCP: TCP only.

UDP: UDP only.

TCP and UDP packages used for generic events may contain special characters, such as @, #, +, ~, and more.

Selectable IP address types: IPv4, IPv6 or both.

Select the separator bytes used to separate individual generic event records. Default for data source type International (see Data sources earlier) is 13,10. (13,10 = <CR><IF>).

Available echo return formats:

• Echo statistics: Echoes the following format: [X],[Y],[Z],[Name of generic event]

  [X] = request number.

  [Y] = number of characters.

  [Z] = number of matches with a generic event.

  [Name of generic event] = name entered in the Name field.

• Echo all bytes: Echoes all bytes
• No echo: Suppresses all echoing

By default, the list only shows the most relevant options. Select the Show all check box to display all available encodings.

Specify the IP addresses, that the management server must be able to communicate with in order to manage external events. You can also use this to exclude IP addresses that you do not want data from.
