Terminology related to Smart Wall
Term | Meaning |
|---|---|

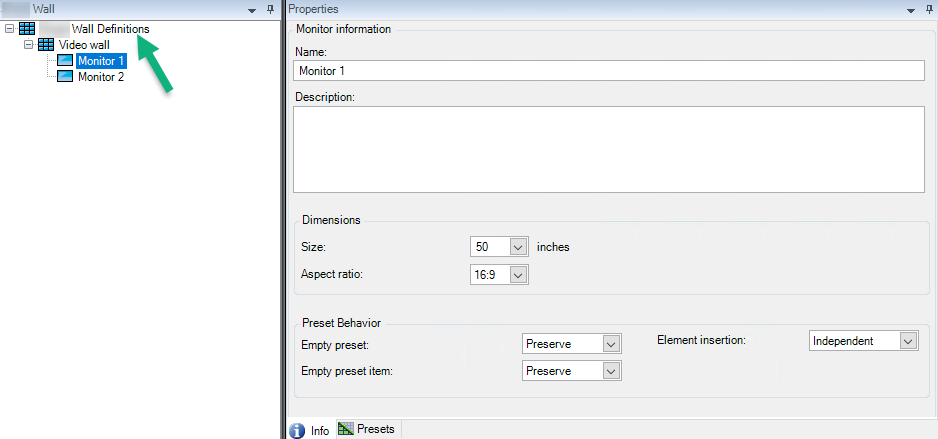

Smart Wall definition | The configuration of a video wall in XProtect Management Client, including the setup of Smart Wall monitors and presets.  |

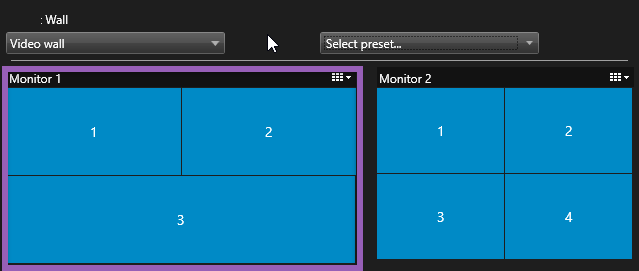

Smart Wall monitor | The virtual representation of a physical monitor. In most cases, we need to distinguish between physical monitors and Smart Wall monitors.  The image shows the Smart Wall control in XProtect Smart Client. |

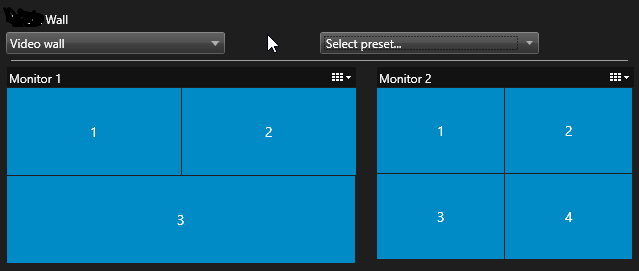

Smart Wall control | The virtual representation of a video wall that allows operators to push content onto the video wall.  |

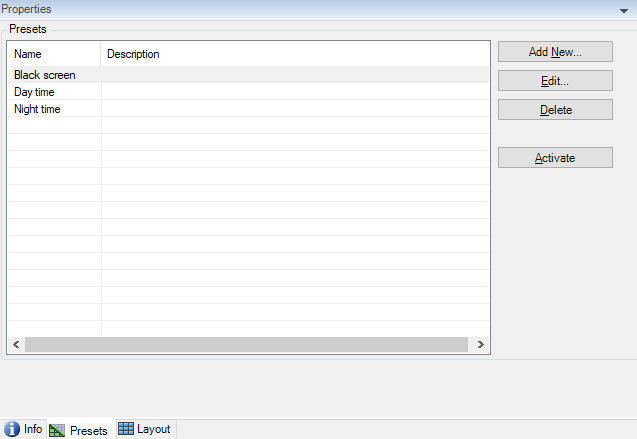

Preset | A predefined layout for one or more Smart Wall monitors. Presets determine which cameras are displayed, and how content is laid out on each monitor on the video wall.  NoteIf you come across the term "preset" in the context of PTZ cameras, then it has a different meaning and refers to the concept preset position. |

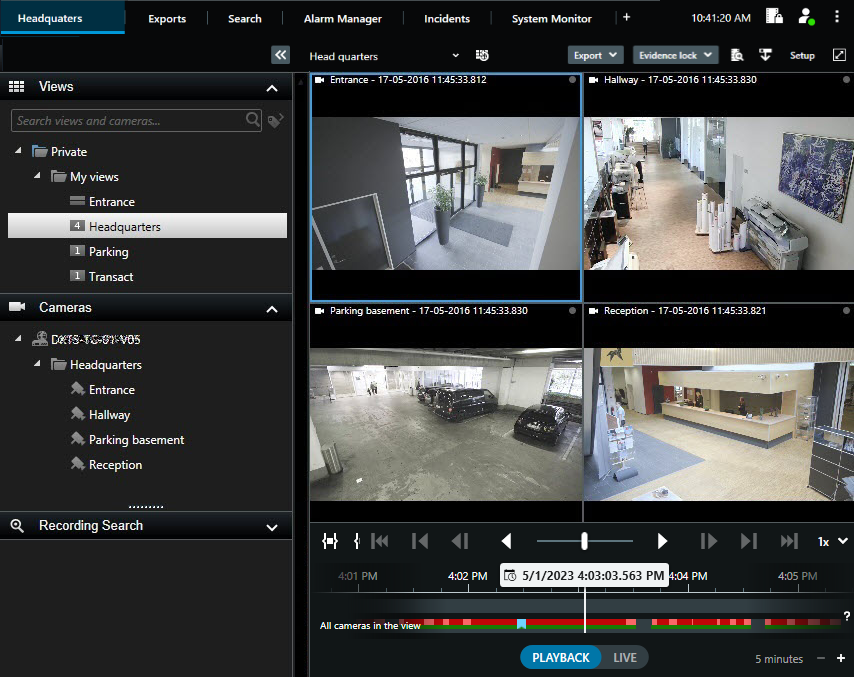

View | A grouping of cameras or other elements, for example webpages, that allows operators to view video from related cameras and other types of content.  |

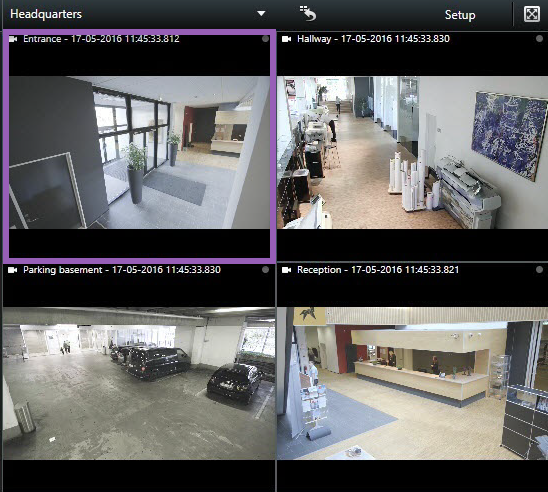

View item | A position within a view that typically holds a camera.  |
Preset item | A view item where its default content depends on the configuration of the underlying preset.  |

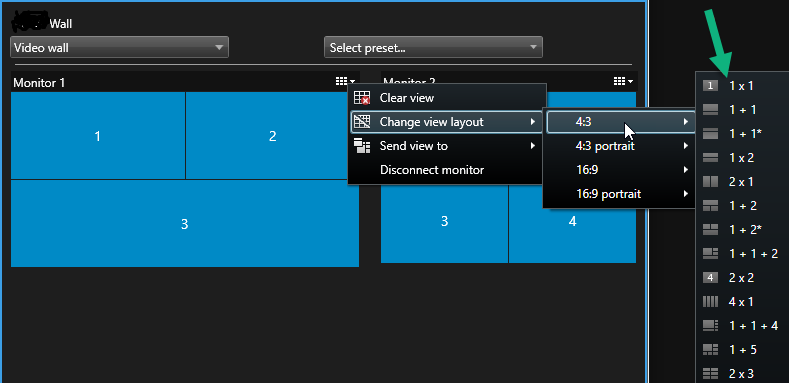

View layout | The layout of a Smart Wall monitor that defines how to arrange the view items, for example 2x3 or 1+2.  |
