XProtect Management Client

A distributed system setup

Last Updated: 1 minute read
Version2026r1
LanguageEnglish

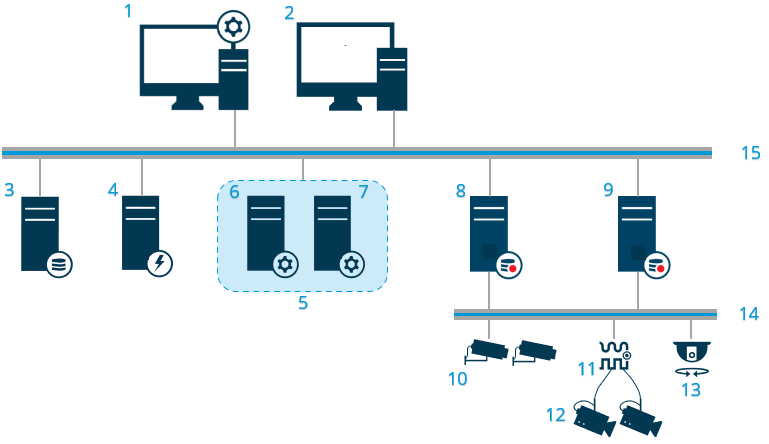

An example of a distributed system setup.

Example of a distributed system setup. The number of cameras, recording servers, and connected clients, can be as high as you require.

Note

All computers in a distributed setup must either be on a domain or in a workgroup.

Legend:

  1. Management Client(s)

  2. XProtect Smart Client(s)

  3. Server with SQL Server

  4. Event server

  5. Microsoft cluster

  6. Management server

  7. Failover management server

  8. Failover recording server

  9. Recording server(s)

  10. IP video cameras

  11. Video encoder

  12. Analog cameras

  13. PTZ IP camera

  14. Camera network

  15. Server network
