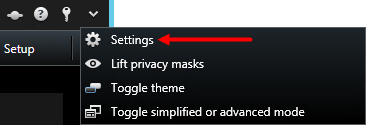

Settings window (explained)

Select how the XProtect Smart Client reacts when you maximize it by clicking the Maximize/Restore button in the application toolbar. If you select Maximize to full screen, the XProtect Smart Client will cover any Windows taskbar on your screen when maximized.

Maximization is not the same as full screen viewing.

Select how the XProtect Smart Client displays camera-related message texts. These can be displayed as an overlay on top of the camera image or on a black background. You can also choose to hide such messages completely.

Select how the XProtect Smart Client displays server-related message texts. These can be displayed as an overlay or hidden completely.

Select whether to show or hide the green video indicator on the camera title bar. Lights up when connection to the camera is established.

You can override this setting on individual cameras by adjusting camera properties in setup mode.

Select whether to show or hide the camera title bar. The title bar displays the name of the camera and the colored indicators signifying events, detected motion, and video recordings.

You can override this setting on individual cameras by adjusting camera properties for the camera(s) in setup mode.

Select whether to show or hide the current time and date (of the computer running the XProtect Smart Client) in the title bar.

Select what to show if there are empty positions in views, for example, you can select a logo or have just a black background displayed.

Select the thickness of the border between camera positions in views.

Select a default for the quality of video viewed in the XProtect Smart Client. Note that image quality also affects bandwidth usage. If your XProtect Smart Client is used over the internet, over a slow network connection, or if for other reasons you need to limit bandwidth use, image quality can be reduced on the server by selecting Low or Medium.

You can override this setting on individual cameras by adjusting camera properties for the camera(s) in setup mode.

Select a default frame rate for video viewed in the XProtect Smart Client.

You can override this setting on individual cameras by adjusting camera properties for the camera(s) in setup mode.

Select a default PTZ click mode for your PTZ cameras. Options are click-to-center or virtual joystick. You can override this setting on individual cameras by selecting a different default PTZ click mode for the camera.

Select how the XProtect Smart Client opens after you have logged in. Options are full-screen mode, window mode or your last used mode.

Select whether the XProtect Smart Client displays a view immediately after you have logged in. Options are: the view you last used, no view, or that you decide after you have logged in.

Lets you select whether you want the mouse pointer to be hidden after a period of inactivity. You can specify how much time you want to elapse before hiding the mouse pointer. The default option is after 5 seconds. Options are:

• Never
• After 5 seconds
• After 10 seconds
• After 20 seconds
• After 30 seconds

If you move the mouse after a period of inactivity, it is enabled immediately.

Specify whether you want the snapshot feature to be available or unavailable. A snapshot is an instant capture of a frame of video from a camera at a given time.

Specify the path indicating where you want your snapshots to be saved to.

The ability to play back recorded video from individual cameras on the Live tab.

The ability to view and use overlay buttons on the Live tab for activating speakers, events, outputData going out of a computer. On IP surveillance systems, output is frequently used for activating devices such as gates, sirens, strobe lights, and more., moving PTZPan-tilt-zoom; a highly movable and flexible type of camera. cameras, clearing indicators from cameras, etc.

Select whether you want to add quick or detailed bookmarks from the view position toolbar or through ready-made overlay buttons on the Live or the Playback tab. Enabling or disabling this option on the Playback tab will control whether or not the corresponding button is enabled on the Search tab.

Depending on your user rights, access to adding bookmarks from some cameras may be restricted.

The ability to print from the Live and Playback tab. Enabling or disabling this option on the Playback tab will control whether or not the corresponding button is enabled on the Search tab.

The ability to show bounding boxes on live video on the Live tab or on recorded video on the Playback tab on all cameras. Bounding boxes are used for, for example, tracking objects.

The bounding box feature is only available if connected to certain surveillance systems and to cameras that support metadata. Depending on your user rights, access to bounding boxes from some cameras may be restricted.

The ability to play back recorded video from individual cameras independently on the Playback tab, where all cameras in a view otherwise by default display recordings from the same point in time (the playback time).

The ability to add new or edit existing overlay buttons in setup mode. To add overlay buttons, the Overlay Buttons list must be set to Available (you manage this on the Panes tab in the Settings window).

Select to show or hide incoming audio on the timeline

Select to show or hide outgoing audio on the timeline.

Select to show or hide additional data from other sources.

Select to show or hide additional markers from other sources.

Select whether to show or hide bookmarks on the timeline.

Select whether to show or hide motion indication on the timeline.

Select whether to show or hide the timeline for all cameras.

Select the path you want to export to.

Select if you want to cover areas with privacy masksA blurred or solid color that covers an area of the video in the camera view. The defined areas are blurred or covered in live, playback, hotspot, carousel, smart map, smart search, and export modes in the clients. in the exported video.

The privacy masks that you add here only apply to the current export and for the selected video. The export may already include video with privacy masks configured by your system administrator. These privacy masks are configured in the Management Client, on the Privacy masking tab.

Select whether or not you can export in media player format.

Select whether you want video texts to be optional, required or unavailable when you export in media player format. With video texts, the user can add overlay text on the exported recordings.

Select if you want codecA technology for compressing and decompressing audio and video data, for example in an exported AVI file. configuration to be available or not when you export in media player format. The codec properties depend on the selected codec. Not all codecs support this option.

Select whether or not you can export in XProtect format.

Select whether you want project comments to be optional, required or unavailable when you export in XProtect format.

Select whether you want device comments to be optional, required or unavailable when you export in XProtect format.

Specify whether the OpenStreetMap service can be used as a geographic background. If you select Unavailable, XProtect Smart Client does not display it as an option.

To use a different tile server (see OpenStreetMap tile server (explained)) for your OpenStreetMap than the one specified in the configuration, enter the server address here.

Specify whether to create a location when a user adds a custom overlayA user-defined, graphic element that users can add to a smart map, for example to illustrate a floorplan in a building, or to mark borders between regions. A custom overlay can be an image, a CAD drawing, or a shapefile.. For more information, see Adding, deleting, or editing custom overlays.

Enter or edit the private cryptographic key that you generated for the Bing Maps API.

Enter or edit the client ID that you generated for the Google Static Maps API.

Enter or edit the private cryptographic key that you generated for the Google Static Maps API.

Enter the key combination you want to use as a shortcut to a particular action.

Select to define how you want to apply the shortcut:

• Global: On all of the XProtect Smart Client tabs
• Playback mode: Only on the Playback tab
• Live mode: Only on the Live tab
• Setup mode: Only in setup mode

Select a command category and then select one of the associated commands. If you want all your views listed to allow you to create keyboard shortcuts for individual views, select the Views. All category.

Some commands only work when the keyboard shortcut is used in certain contexts. For example, a keyboard shortcut with a PTZPan-tilt-zoom; a highly movable and flexible type of camera.-related command will only work when using a PTZ camera.

Select from the list of available joysticks.

There are three axes:

• X-axis (horizontal)
• Y-axis (vertical)
• Z-axis (the depth or zoom level)

Select to change the default direction the camera moves in when you move the joystick. For example, select to move a PTZ camera to the left when you move the joystick to the right and move down when you move the joystick towards you.

Select to use a fixed rather than a relative positioning scheme (moving the joystick moves the joystick-controlled object based on the object's current position).

Select the function for an axis: Camera PTZ Pan, Camera PTZ Tilt, Camera PTZ Zoom, or No action.

Test the effect of your selections. When you have selected a function for the axis you want to test, move the joystick along the required axis to view the effect, indicated by a movement of the blue bar.

Specify the dead zone for the joystick's pan and tilt functions. The further you drag the slider to the right, the larger the dead zone becomes, and the more you will have to move the joystick handle before information is sent to the camera. Dragging the slider to the far left disables the dead zone (only recommended for high-precision joysticks). Use the Axis setup preview to test the effect of your dead zone settings.

Specify dead zone for the joystick's zoom function. The further you drag the slider to the right, the larger the dead zone becomes, and the more you will have to move the joystick handle before information is sent to the camera. Dragging the slider to the far left disables the dead zone (only recommended for high-precision joysticks). Use the Axis setup preview to test the effect of your dead zone settings.

The name of the button.

Select one of the available actions for the required joystick button.

If relevant, specify a parameter for the command or action. For example, if you want to specify the window and view position for the Copy the selected camera view item parameter, enter 2;1 to have the camera copied to the floating window (window 2), in the first view position (view position 1).

Specify whether you want alarms to play sound notifications.

Specify whether you want desktop notifications for alarms to be displayed. They will only appear when XProtect Smart Client is running.

If the field is grayed out, it is has been locked by your system administrator in XProtect Management Client.

Your system supports multicasting of live streams from recording servers to clients. If multiple XProtect Smart Client users want to view live video from the same camera, multicasting helps saving considerable system resources. Multicasting is particularly useful if you use the Matrix functionality, where multiple clients require live video from the same camera.

Multicasting is only possible for live streams, not for recorded video/audio.

Enabled: is the default setting. In the Management Client, the recording servers and cameras must also have the functionality enabled to make multicasting from servers to clients available.

Disabled: multicasting is not available.

Controls if hardware-accelerated decoding is in use. The load on the CPU is high in a view with many cameras. Hardware acceleration moves some of the CPU load to the Graphics Processing Unit (GPU). This improves the decoding capability and performance of the computer. This is useful, mainly if you view multiple H.264A compression standard for digital video. Like MPEG, the standard uses lossy compression as it stores only the changes between keyframes, removing often considerable amounts of redundant information: keyframes stored at specified intervals record the entire view of the camera, whereas the following frames record only pixels that change. Together with a very large degree of compression, this helps greatly reduce the size of video in the H.264 format. The very large degree of compression in H.264, however, can use considerable resources on the devices involved in the data communication. For example, the computer running XProtect Smart Client should be able to use considerable resources on decompressing H.264 video when it receives it from the surveillance system./H.265 video streams with a high frame rateA measure indicating the amount of information contained in motion video. Typically measured in FPS (Frames Per second). and a high resolution.

Auto is the default setting. It scans the computer for decoding resources and always enables hardware acceleration if available.

Off disables hardware acceleration. Only the CPU processes the decoding.

Controls how many decoding threads are used to decode video streams. This option can help you improve performance on multi-core computers in live as well as playback mode. The exact performance improvement depends on the video stream. This setting is mainly relevant if using heavily coded high-resolution video streams like H.264/H.265—for which the performance improvement potential can be significant—and less relevant if using, for example, JPEG or MPEG-4. Note that multi-threaded decoding generally is memory-intensive. The ideal setting depends on the type of computer you use, the number of cameras you need to view, and on their resolution and frame rate.

Normal means that no matter how many cores your computer has, it will only use one core per camera position.

Auto is the default setting. Auto means that the computer uses as many threads per camera position as it has cores. However, the maximum number of threads is eight, and the number of threads actually used may be lower, depending on which codecA technology for compressing and decompressing audio and video data, for example in an exported AVI file. (compression/decompression technology) is used.

Advanced users can manually select the number of threads used, with a maximum of eight. The number you select represents a maximum; the number of threads actually used may be lower, depending on the codec (compression/decompression technology).

This setting affects all camera positions, in all views, in live as well as playback mode. You cannot specify the setting for individual camera positions or views. Because this setting may not be equally ideal for all of your camera positions and views, we recommend that you monitor the effects and, if required, re-adjust the setting to achieve the optimum balance between performance improvement and memory use.

Controls if adaptive streaming is in use. The load on the CPU and the GPU is high in a view with many cameras. Adaptive streaming enables XProtect Smart Client to automatically select the live video streams with the best match in resolution to the streams requested by the view items. This decreases the load on the CPU and the GPU and thereby improves the decoding capability and performance of the computer.

Disabled is the default setting. No automatic stream selection is done.

Enabled scans the XProtect system configuration for available streams and selects the best matching ones for the selected view.

This setting affects all views in live mode.

Interlacing determines how an image is refreshed on a screen. The image is refreshed by first scanning the odd lines in the image, then scanning every even line. This allows a faster refresh rate because less information is processed during each scan. However, interlacing may cause flickering, or the changes in half of the image's lines may be noticeable. With Deinterlacing, you convert video into a non-interlaced format. Most cameras do not produce interlaced video, and this option will not impact quality or performance of non-interlaced video.

No filter is the default setting. No deinterlacing is applied, so the characteristic jagged edges may show up in images if objects are moving. This is because the even and odd lines of the full image are weaved together to compose the full resolution picture. However, these are not captured at the same time by the camera, so objects in motion will not be aligned between the two sets of lines, causing the jagged-edge effect. Performance impact: None.

Vertical stretch top field: This option only uses the even lines. Each odd line will be “copied” from the previous (even) line. The effect is that jagged edges do not appear, but this is at the expense of reduced vertical resolution. Performance impact: Less expensive than the No filter option because only half the number of lines will need post-processing.

Vertical stretch bottom field: This option only uses the odd lines. Each even line will be “copied” from the following (odd) line. The effect is that jagged edges do not appear, but this is at the expense of reduced vertical resolution. Performance impact: Less expensive than the No filter option because only half the number of lines will need post-processing.

Content adaptive: This option applies a filter to areas of the image where jagged edges would otherwise show up. Where no jagged edges are detected, the image is left untouched. The effect is that jagged edges are removed and full vertical resolution is preserved in the areas of the image where no jagged edges are perceived. Performance impact: More expensive than the No filter option because the total CPU cost per decoded and rendered frame is increased by around 10%.

View the settings and performance level of the video stream in the selected view. This is helpful when you must verify settings or diagnose a problem.

Select between these options:

Hide: No video diagnostics overlay. Default setting.

Level 1: Frames per second, video codec, and video resolution.

Level 2: Frames per second, video codec, video resolution, multicast, and hardware acceleration status.

Level 3: Debug level. Mainly for system administrators to troubleshoot or optimize system performance.

Select a predefined time zone or a custom time zone. The available options are:

Local: the time zone of the computer running the XProtect Smart Client

Master Server's time zone: the time zone of the server

Custom time zone: if you want a particular time zone, select this option and then select from the list of available time zones in the Custom time zone field.

If you have selected Custom in the Time zone field, you can select any time zone known by the computer. This is useful if two users in different time zones need to view an incident—having the same time zone makes it easier to identify and establish that they are watching the same incident.

Select A4 or letter format for your PDF reports. You can create reports of events from, for example, XProtect Access.
